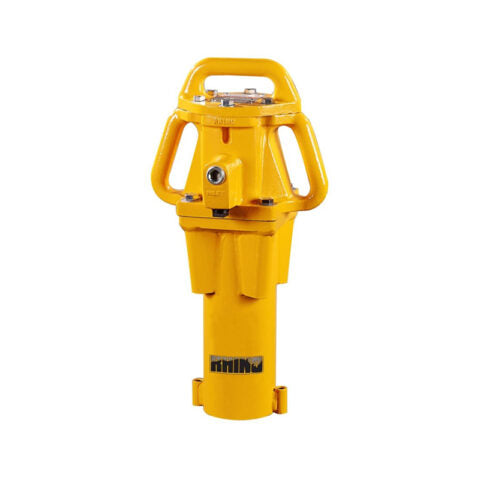

Rhino PD-55 Medium Duty Post Driver
$2,003.00
Free Freight on all Mudmixer orders over $250!
Specifications
| Model | PD-55 |
| Duty | Medium |
| Air Consumption | 42 CFM @ 90 PSI |
| Weight | 54.6 lbs (24.8 kg) |
| Master Chuck | 3-7/8" ID |
Key Features
- One Moving Part – A double valve, reciprocating piston insures low-maintenance and longevity.
- Only 54 lbs with an exclusive Alloy Steel, 3-1/2" piston, delivering up to 1,700 blows per minute.
- Fits into tight jobsites, and only needs one operator.
- Additional driving options possible with easy bolt-on adapters.
- Ductile Iron Casting Body with excellent wear characteristics.
- Reinforced, replaceable Master Chuck with Safety Air Vents.
- Bell-Mouthed chuck adapters guide post insertion.
- Made in the U.S.A.

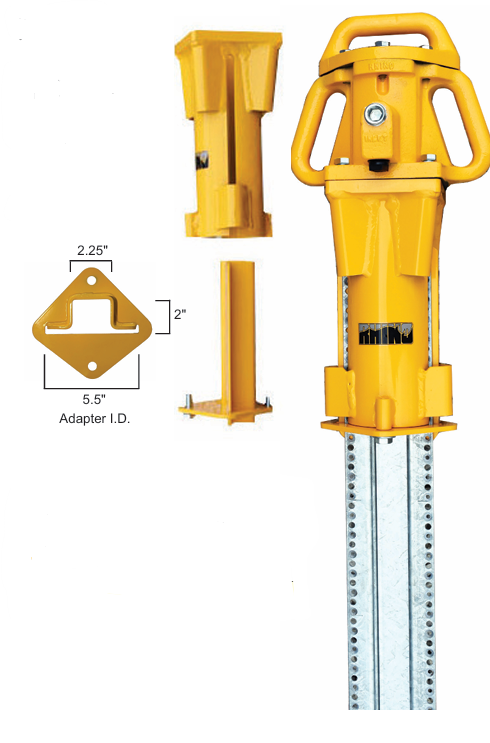

Compatible Post Types
| 3/4" to 1" Ground Rod | X* | 1-5/8" Pipe | X* |
| 3/4" to 1-1/2" Reinforcing Bar Tent Stakes | X* | 2" Pipe | X* |
| 1" Concrete Form Pins | X* | 2-1/2" Pipe | X*+# |
| 1" Pipe | X* | 3" Pipe | X*+# |
| 1-1/4" to 1-1/2" Pipe | X* | T Posts | X* |
| Telespar Posts | X* | Telespar Post Breakaway Anchor 2-1/2" | X*+# |
| Telespar Post Breakaway Anchor 3" | X+#- | 1.2 to 1.5 lbs/ft Channel Posts | X* |
| 2 to 2.75 lbs/ft Channel Posts | X* | 3 to 4 lbs/ft Channel Posts | X* |
| Channel Post Breakaway Anchor | X*+# | C Posts | X |
| Rectangular Posts | X | Fiberglass T Posts | X* |
- An optional master chuck is required
* An adapter is required
+ A driving cap is required
# Indicates a combination of accessories is required
